Steel grade
Specify the required mold steel grade and whether an equivalent grade may be proposed for approval.
Engineering Compatibility
Injection Mold Standards & Tooling Materials: Press Interfaces & Component Requirements
Review injection mold standards, tooling materials, and press interfaces for your project. DME imperial and HASCO metric are component-system options, not automatic regional settings. Confirm locating, ejection, cooling, and electrical interfaces against the target press drawings and approved mold design. SPI classes below are reference classifications, not a tool-life warranty.
Example Component SystemDME / Imperial option
Specify required thread and coupler interfaces against the press and plant connections.
Locating Ring: Confirm locating and platen requirements against the target press drawing.
Ejectors: Confirm ejector components and dimensions against the approved mold design.
Sprue Bushing: Confirm nozzle and sprue interface against the press documentation.
Agree the required inspection method, report format, material certificates, and delivery records before the quotation is approved.
Discuss Press Interfaces

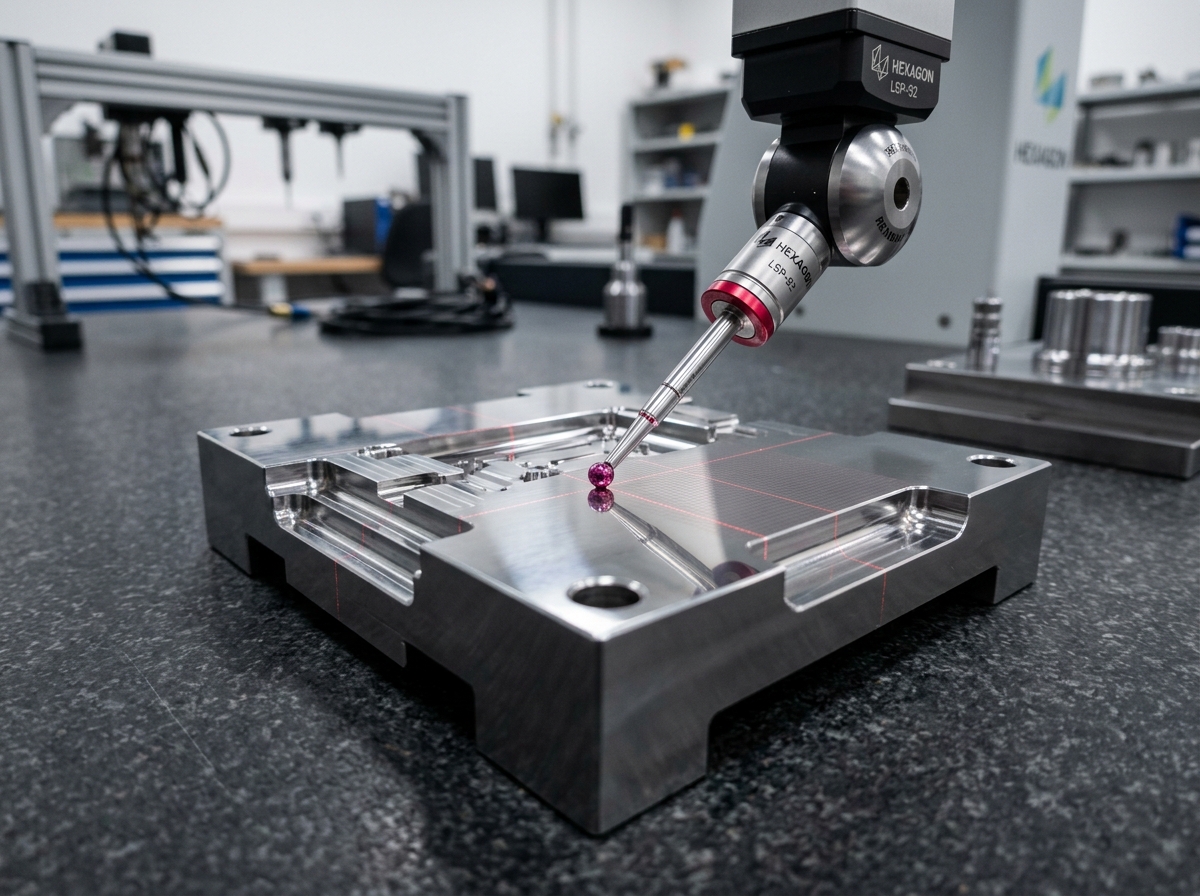

Quality VerificationInspection scope by agreement
Confirm equipment and reports per project
Project Requirements
Define Tooling Acceptance: Confirm the Requirements in the Contract
If your project specifies an SPI class, share the applicable standard and edition. We can review it with the RFQ; scope, inspection, acceptance, and any tool-life commitment must be confirmed in the written agreement.
Production and Tool Life
State expected production quantity and the required tool-life target, with operating assumptions where known.
Steel and Heat Treatment
Specify required steel grades, heat treatment, and the material or process records to be supplied. Review sample European steel MTCs and vacuum heat treatment logs on our Quality Control page.
Mechanisms and Components
List required slides, lifters, inserts, cooling, ejection, and press-interface components.
Trials and Maintenance Acceptance
Define trial samples, inspection criteria, maintenance scope, and the records needed for acceptance.
Tool Steel Requirements
Mold Steel SelectionConfirm Material Against Project Requirements
Steel grade, heat treatment, and supporting records are confirmed against the approved project specification and supplier documentation.
Heat treatment
Define the required material condition and heat-treatment scope against the approved specification.
Material records
List any mill certificates, heat-treatment records, or other documents required, then confirm availability and delivery scope.
Application conditions
Review the resin, production target, surface finish, and operating environment when selecting material.
Surface Textures & Optics
Surface Finish PlanningDefine the Finish and Acceptance Sample
Describe the finish required for each part area. For textured surfaces, identify the texture source and affected area; for all finishes, agree the acceptance sample and project criteria before tooling approval.
Polished finish
Set the cosmetic target and review against an approved sample.
Textured finish
Specify texture source, area, and acceptance sample.
General Interface Reference
DME (Imperial) vs HASCO (Metric)Examples for Press-Drawing Review
DME and HASCO are the two predominant global tooling component standards for plastic injection molds. DME (North America) utilizes imperial inch dimensions, UNC threads, and NPT tapered cooling fittings, whereas HASCO (Europe and global) utilizes ISO metric dimensions (mm), metric threads, and BSPP parallel cooling fittings. Selecting between DME and HASCO depends on the destination injection molding press platen interfaces and regional spare parts availability.
DME imperial and HASCO metric are component-system options, not geographic defaults. The entries below are a requirements checklist; confirm exact parts and dimensions against the target press drawings, current supplier catalogs, and approved mold design.
| Hardware Parameter | North America (DME Imperial) | Europe & Global (HASCO Metric) | Production Risk / Mitigation |
|---|---|---|---|
| Locating and mounting | DME 3.990" (101.35 mm) or 4.000" locating ring; UNC platen bolt threads | HASCO 110 mm, 125 mm, or 160 mm locating ring diameter; metric M12/M16 platen threads | Verify against target molding machine platen drawings. |
| Cooling connections | DME NPT tapered threads (1/8", 1/4", 3/8") with Jiffy-tite brass quick couplers | HASCO BSPP / G-threads or metric parallel fittings with HASCO Z81 / Stäubli couplers | Ensure direct fit with plant water manifold hoses and manifold racks. |
| Ejection and guidance | DME Fractional inch ejector pins (0.125", 0.187", 0.250") and imperial leader bushings | HASCO DIN 1530 / ISO 6751 metric ejector pins (3 mm, 4 mm, 6 mm, 8 mm) and Z01/Z10 guide pins | Guarantees rapid replacement from regional spare-parts supply. |
| Lifting and clamping | DME Imperial hoist ring threads (UNC 5/8"-11, 3/4"-10, 1"-8) and standard clamping slots | HASCO Metric DIN 580 eye bolt tapped holes (M12, M16, M24) and metric EU clamping ledges | Prevents crane rigging delays and ensures safe tool changeover. |
| Electrical and hot runner | DME Heavy-duty 5-pin to 24-pin connectors; 120V/240V zones with Type J thermocouples | HASCO Harting Han modular connectors; 230V/400V zones with Type J or K thermocouples | Verifies temperature controller compatibility before tool delivery. |
Engineering Standards Takeaways (Quick Summary for Buyers & Audits)
1. Confirm press interfaces:Share the target press and platen drawings so interface requirements can be reviewed and included in the approved design.
2. Specify spare parts:List requested wear parts and quantities in the RFQ; confirm supply in the quotation.
3. Request material records:State the required steel grade and certificates or heat-treatment records in the RFQ, then confirm their scope before production.
Unsure which SPI class or regional fittings suit your press?
Email the target press details, preferred component system, production target, and inspection/report needs. Do not attach confidential CAD before a written NDA is in place.
