Precision Mold Manufacturing Equipment Makino CNC, Sodick Wire EDM, Charmilles & Croma CMM
Browse Nodinson's high-precision toolroom fleet: Japanese Makino high-speed CNC (±0.002 mm), Swiss Charmilles mirror EDM (VDI 12 / Ra 0.4 µm), Japanese Sodick slow wire-cut EDM (±0.002 mm), Haitian precision injection presses (80T to 400T), and Hexagon Croma CNC 3D CMM metrology (0.001 mm resolution). Review the complete equipment list below.
Published Equipment OverviewCNC, EDM, Injection Molding & Metrology
Explore the main equipment groups, then view the complete equipment list for individual entries and listed quantities. Confirm current availability and suitability for each RFQ.

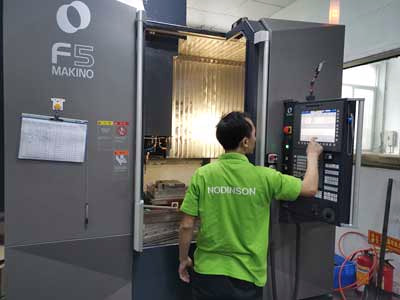

Makino High-Speed CNC (Japan)
High-speed vertical machining center (up to 35,000 RPM) achieving tight-tolerance mold core/cavity contouring within ±0.002 mm.
- Published range:
- 500 × 400 × 500 mm
- Scope:
- Confirm per RFQ

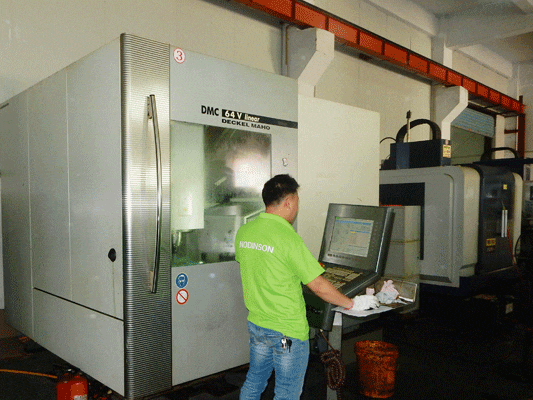

Deckel Maho Machining Center (Germany)
5-axis high-speed milling center for complex contoured 3D mold inserts, slides, and precision electrode machining.
- Published range:
- 640 × 600 × 500 mm
- Scope:
- Confirm per RFQ

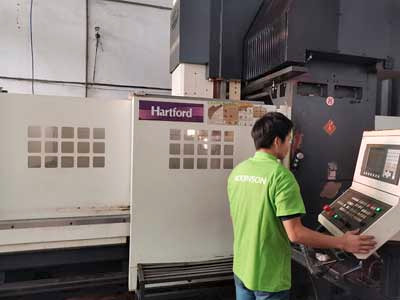

Harford Gantry CNC (Taiwan)
Large-format heavy-duty gantry CNC machining center for large mold bases and tooling plates up to 2.06 meters.
- Published range:
- 2,060 × 1,560 × 1,070 mm
- Scope:
- Confirm per RFQ

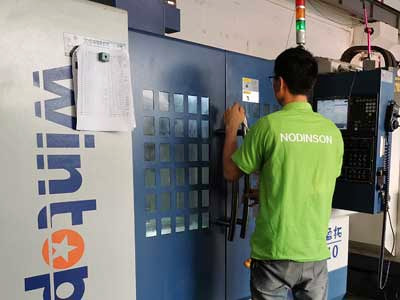

Wintop Precision CNC Centers (Taiwan)
High-precision vertical machining centers for mold plates, cavity roughing, and semi-finishing operations.
- Published range:
- 800 × 500 × 500 / 1,000 × 500 × 500 / 800 × 500 × 550 mm
- Scope:
- Confirm per RFQ

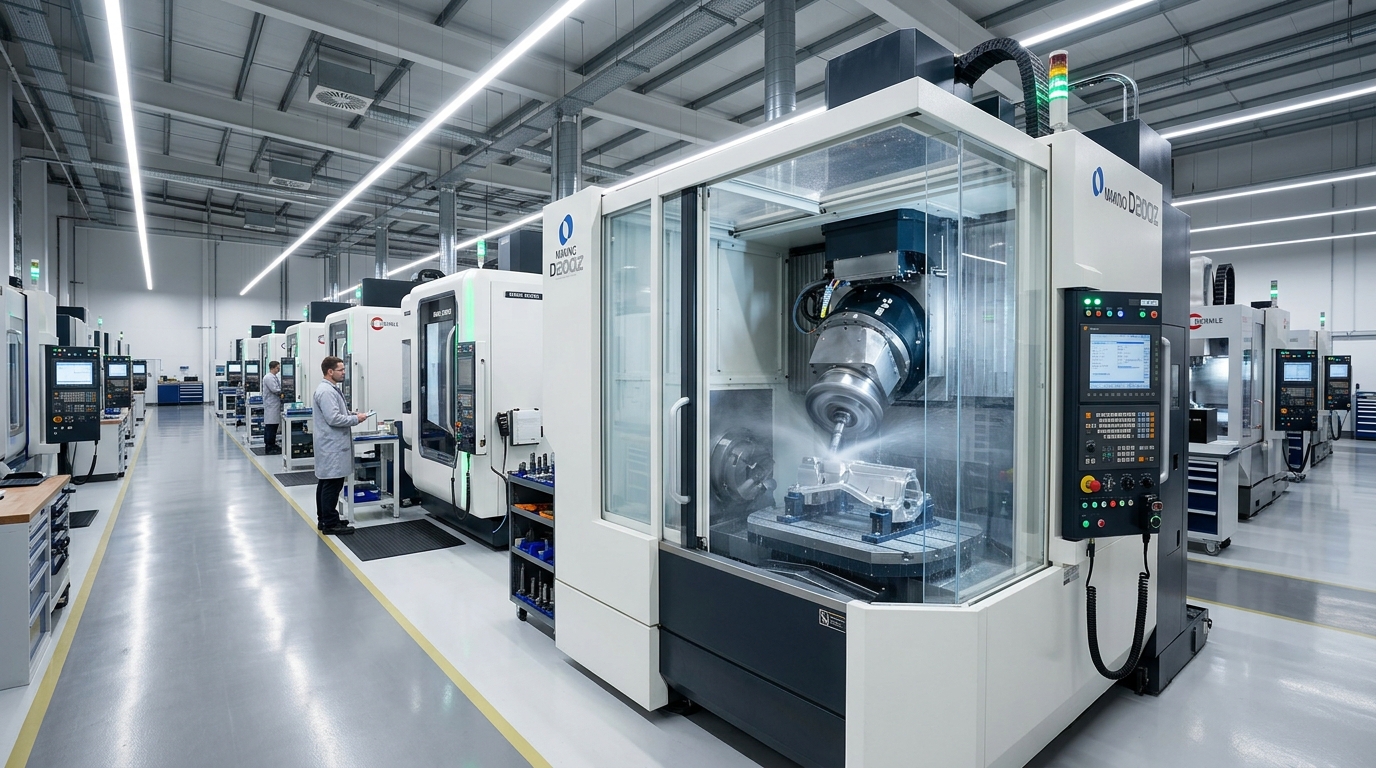

Machining and EDM Work Areas
Images of machining and EDM work areas and CNC operations. Check the equipment list for published machine details.
Complete Equipment ListBrands, Specifications and Listed Quantities
Equipment names, specifications and quantities from the published company list. Confirm current availability and project suitability when requesting a quotation.
Injection molding quantities are reproduced from the table. The accompanying description lists a different total; confirm the current press inventory for your project.
| Equipment | Brand & Model | Origin | Stroke (mm) / Clamping Force | Listed Qty |
|---|---|---|---|---|
| CMM | Croma | China | 500 × 400 × 500 mm | 1 |
| CNC | Wintop | Taiwan | 800 × 500 × 500 mm | 2 |
| CNC | Wintop | Taiwan | 1,000 × 500 × 500 mm | 2 |
| CNC | Harford | Taiwan | 2,060 × 1,560 × 1,070 mm | 1 |
| CNC | Wintop | Taiwan | 800 × 500 × 550 mm | 2 |
| CNC(HSP) | Makino | Japan | 500 × 400 × 500 mm | 1 |
| CNC(HSP) | DECKEL MAHO | Germany | 640 × 600 × 500 mm | 1 |
| CNC(HSP) | Jiatie | Taiwan | 500 × 600 × 250 mm | 2 |
| Precision wire cut | Sodick | Japan | 300 × 250 × 300 mm | 1 |
| Mirror EDM | Charmille | Switzerland | 300 × 200 × 300 mm | 3 |
| Grinding Machine | Fukexing | Taiwan | 500 × 400 × 300 mm | 4 |
| EDM drill machine | Jinma | China | 400 × 300 × 400 mm | 1 |
| EDM | Wintop | Taiwan | 500 × 400 × 500 mm | 2 |
| EDM | Bestop | Taiwan | 500 × 400 × 500 mm | 4 |
| Double head EDM | Bestop | Taiwan | 1,000 × 800 × 500 mm | 1 |
| Wire Cutting | Taizhou | China | 500 × 400 × 300 mm | 3 |
| Deep Drill Machine | Temy Numerical | Taiwan | 1,500 × 1,000 × 1,500 mm | 2 |
| Injection machine | Haitian MA4000 | China | 400 T | 1 |
| Injection machine | Donghua 380SE | China | 380 T | 1 |
| Injection machine | Haitian MA2500 | China | 250 T | 2 |
| Injection machine | Donghua 190E | China | 190 T | 2 |
| Injection machine | Haitian MA1600 | China | 160 T | 2 |
| Injection machine | Haitian MA1200 | China | 120 T | 2 |
| Injection machine | Haitian MA860 | China | 80 T | 2 |
Check Equipment Fit for a Project
Include the part, material, quantity, target press, and inspection needs. Do not send confidential CAD until a written NDA is in place.
